Waterproof AC Solar Slide Gate Operators 800kg White Adjustable Resistance Sensitivity

Name: Waterproof AC Solar Slide Gate Operators 800kg White Adjustable Resistance Sensitivity
Brand: GATECH
Price: 1 USD

Wholesale Waterproof AC Solar Slide Gate Operators 800kg White Adjustable Resistance Sensitivity from china suppliers

Brand Name : GATECH

Model Number : G8set

Certification : CE

Place of Origin : China

MOQ : 50

Price : Negotiation

Payment Terms : T/T, L/C, Western Union

Supply Ability : 2000 sets per month

Packaging Details : Carton package

Name : sliding door motor copper kit

Open style : Sliding

Color : White ,purple

Material : Aluminum

Type : Entry Doors

Feature : Waterproof

Application : Residential

Optional : Transmitter and receiver

Contact Now

AC 800kg Sliding Operator Automatic Gate Opener Kit Residential Use

1. Totally integrated electrical mechanical system (excludes racks).

2. Control board interface for optional impact-proof infrared photocells.

3. Can connect flashing light and keypad and electric lock and so on.

4. Automatic delayed closing.

5. Adjustable resistance sensitivity.

6. Auto gate stop and re-open when an obstacle is encountered.

7. Wireless remote control or wired remote control are optional.

Specifications	G8 set	G10 set	G15 set	G20 set
Power supply	220V/50Hz;110V/60Hz	220V/50Hz;110V/60Hz	220V/50Hz;110V/60Hz	220V/50Hz;110V/60Hz
Power of Motor	370W	550W	550W	700W
Output torque	20Nm	22Nm	35Nm	45Nm
Operating Speed	12m/min	12m/min	12m/min	12m/min
Maximum Gate length	20m	20m	20m	20m
Shipping Mass of unit	12.4kg	12.7kg	14.7kg	15.8kg
Maximum Gate Mass	800kgs	1000kgs	1500kgs	2000kgs

1) Smooth operation, Easy installation

2) Soft Start and slow Stop

3) Automatical stop against extra resistances

4) Emergency clutch key: open the clutch when power failure and manually open the gate

5) Overheating protector. When the motor temperature reaches the rated value, it will automatically power-off and protect the motor.

Waterproof AC Solar Slide Gate Operators 800kg White Adjustable Resistance Sensitivity

Packaging Details: Standard Exporting Packing

Measurement of motor carton box: 33*27*37 cm

Measurement of accessories carton box :30*20*12cm

Weight :15-17.5KG

Product Tags:

AC solar slide gate operators

solar slide gate operators 800kg

sliding gate opener solar kit 800kg

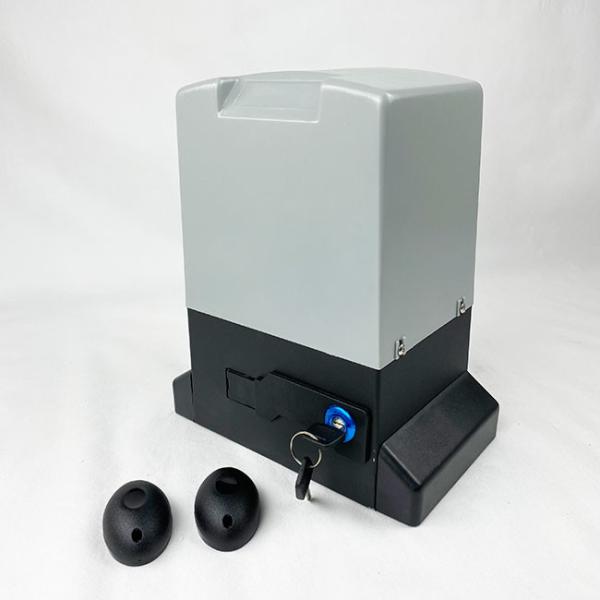

Waterproof AC Solar Slide Gate Operators 800kg White Adjustable Resistance Sensitivity Images
